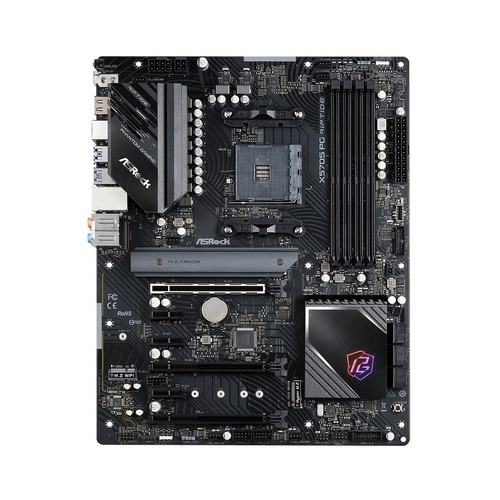

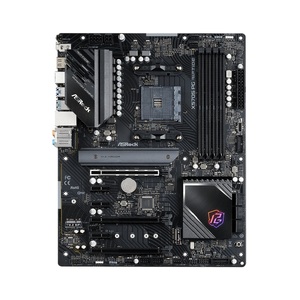

MB AM4 ASRock X570S PG RIPTIDE ATX

// CPU

- Supports AMD AM4 Socket Ryzen™ 2000, 3000, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors

Chipset

- AMD X570

Memory

- Dual Channel DDR4 Memory Technology

- 4 x DDR4 DIMM Slots

- AMD Ryzen series CPUs (Vermeer) support DDR4 5000+(OC) / 4933(OC) / 4866(OC) / 4800(OC) / 4733(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory

Max. capacity of system memory: 128GB

Graphics

- Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU*

- Shared memory default 2GB. Max Shared memory supports up to 16GB.**

- Supports HDMI 2.1 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz

Audio

- 7.1 CH HD Audio (Realtek ALC897 Audio Codec)

LAN

- 2.5 Gigabit LAN 10/100/1000/2500 Mb/s

- 1 x Killer E3100G (PCIE x1 Gigabit LAN 10/100/1000/2500 Mb/s)

Slots

AMD Ryzen series CPUs (Vermeer, Matisse)

- 1 x PCI Express 4.0 x16 Slot (x16 (PCIE1))*

- 2 x PCI Express 4.0 x16 Slots (x4 (PCIE4) / x2 (PCIE6))

- 3 x PCI Express 4.0 x1 Slots

Storage

- 6 x SATA3 6.0 Gb/s Connectors

- 1 x Hyper M.2 Socket (M2_1), supports M Key type 2230/2242/2260/2280 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Vermeer, Matisse) or Gen3x4 (32 Gb/s)

- 1 x Hyper M.2 Socket (M2_2), supports M Key type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Vermeer, Matisse) or Gen3x4 (32 Gb/s)

- Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices

- Supports RAID 0 and RAID 1 for M.2 NVMe storage devices

USB

- 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection)

- 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection)

- 4 x USB 3.2 Gen1 Ports (Supports ESD Protection)*

- 2 x USB 2.0 Ports (Supports ESD Protection)

- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)

- 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (Supports ESD Protection)
