Описание

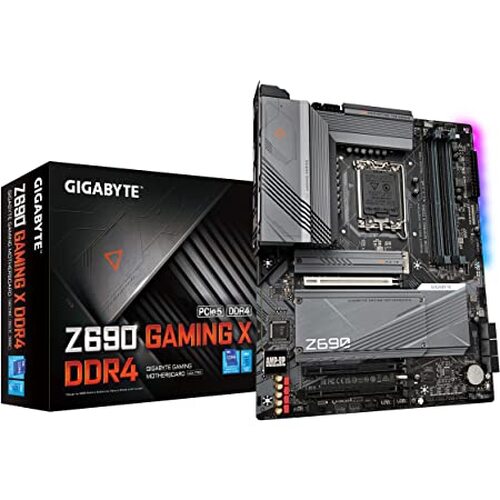

MB S1700 Gigabyte Z690 GAMING X DDR4 1.0 ATX

// CPU

LGA1700 socket: Support for 12th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors

Chipset

- Intel® Z690

Memory

Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules

4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory

Dual channel memory architecture

Onboard Graphics

Integrated Graphics Processor-Intel® HD Graphics support:

1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz

Audio

Realtek® ALC1220-VB CODEC

LAN

Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Expansion Slots

1 x PCI Express x16 slot, running at x16 (PCIEX16)

(The PCIEX16 slot conforms to PCI Express 5.0 standard.)

2 x PCI Express x16 slots, running at x4 (PCIEX4_1, PCIEX4_2)

Storage Interface

1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)

2 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2Q_SB)

1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB)

6 x SATA 6Gb/s connectors

Support for RAID 0, RAID 1, RAID 5, and RAID 10

USB

1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2x2 support

1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header

2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel

5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)

8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)

Материнская плата S1700 Gigabyte Z690 GAMING X DDR4 1.0 ATX

Код Товара: 912863
Нет в наличии

3593 Lei

Описание

MB S1700 Gigabyte Z690 GAMING X DDR4 1.0 ATX

// CPU

LGA1700 socket: Support for 12th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors

Chipset

- Intel® Z690

Memory

4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory

Dual channel memory architecture

Onboard Graphics

Integrated Graphics Processor-Intel® HD Graphics support:

1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz

Audio

Realtek® ALC1220-VB CODEC

LAN

Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Expansion Slots

1 x PCI Express x16 slot, running at x16 (PCIEX16)

(The PCIEX16 slot conforms to PCI Express 5.0 standard.)

2 x PCI Express x16 slots, running at x4 (PCIEX4_1, PCIEX4_2)

Storage Interface

1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)

2 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2Q_SB)

1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB)

6 x SATA 6Gb/s connectors

Support for RAID 0, RAID 1, RAID 5, and RAID 10

USB

1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2x2 support

1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header

2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel

5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)

8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)

Материнская плата S1700 Gigabyte Z690 GAMING X DDR4 1.0 ATX

3593 Lei
